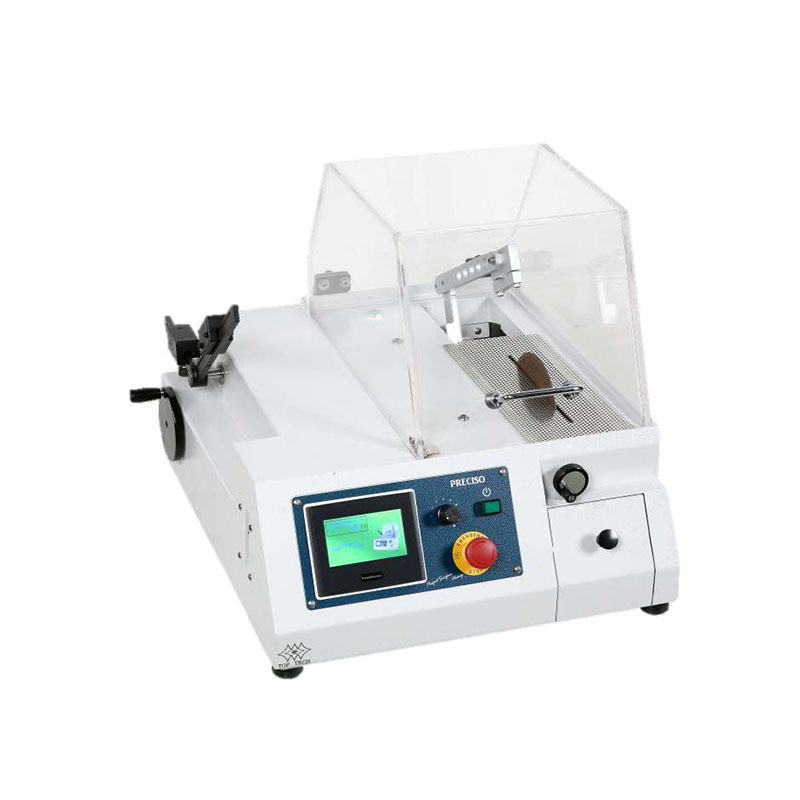

Top Tech CL50 Abrasive Cutter

Top_Tech_CL50_Abrasive_Cutter
Overview
The CL50 is a higher speed bench mounted diamond cut-off machine compared to the CL40. The CL50 increases the capacity from the CL40. It uses 5″ to 7″ cutting discs (125-175mm). Has variable speed wheel control from 150-2000 rpm. Provided horizontal vernier control of 40mm. Maximum Sample size is 40mm. Has auto shut-off at end of the cut. The machine size is 570 x 620 x 450 mm. Weight is 43kgs

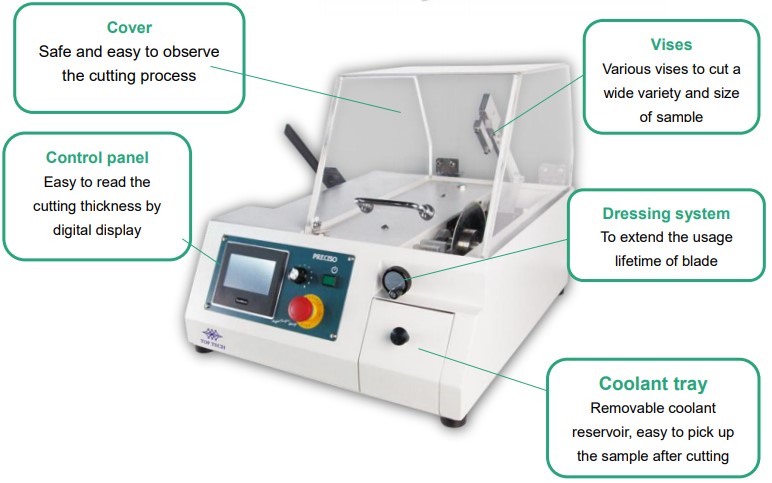

Layout of the CL50 Abrasive Cutter Systems

Top-Tech-layout_of_CL50-abraive-cutting-machine

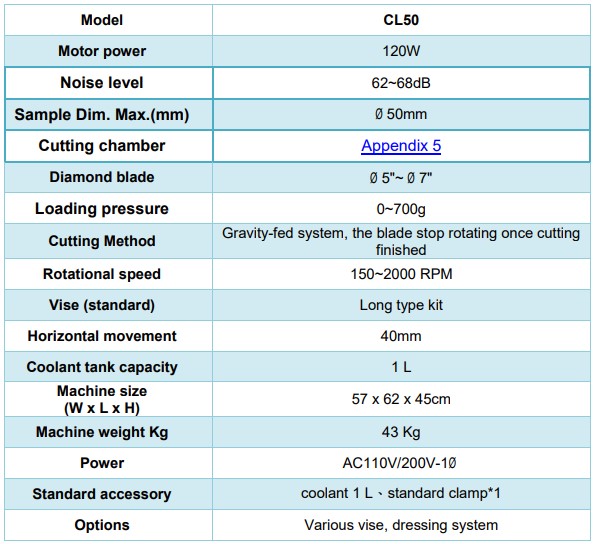

Specifications

Top-Tech-specs_of_CL50-abraive-cutting-machine
