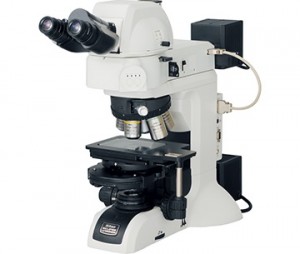

Nikon Eclipse LV100NDA

A motorized microscope with episcopic/diascopic illumination ,which meets the various needs of observation, inspection, research, and analysis across a wide range of industrial fields. Higher NA and a longer working distance than ever before mean superior optical performance and efficient digital imaging.
Max. sample size: 150 x 100 mm.
Key Features:
Modularized microscope body applicable with various observations and tasks
Newly developed CFI60-2 series provides the ultimate in long working distance levels and the most advanced chromatic aberration in a light weight body
Easy digital imaging
Benefits & features
Microscope type
Combined reflected/transmitted illumination models
Motorised type
Modularized microscope body applicable with various observations and tasks
Compatible with brightfield, darkfield, simple polarizing, DIC, epifluorescence and two-beam, interferometry observations. Furthermore, phase contrast and DIC observation with diascopic illumination are also possible. It supports diverse and advanced research, analysis and inspection.
Compatible observation methods:
Compatible stages
– LV-S32 3×2 stage (Stroke: 75 x 50 mm with glass plate) *Can be fitted with LV-S32SPL ESD plate
– LV-S6 6×6 stage (Stroke: 150 x 150 mm) *Can be fitted with LV-S6WH wafer holder / LV-S6PL ESD plate
– LV-SRP P revolving stage
– P-GS2 G stage 2 (Used with stage adapter LV-SAD)
– NIU-CSRR2 Ni-U right handle rotatable ceramic stage (Stroke: 78 x 54 mm)
– C-SR2S right handle stage (Stroke: 78 x 54 mm: Used with stage adapter LV-SAD)
Newly developed CFI60-2 series
Newly developed CFI60-2 series provides the ultimate in long working distance levels and the most advanced chromatic aberration in a light weight body
CFI60-2 series offers higher NA and longer working distances than ever before.
Easy digital imaging
Information about the objective in use is detected and displayed on the camera control unit. In addition, the information is automatically converted into appropriate calibration data when changing magnification.
– Digital Camera System for Microscopy Digital Sight Serie
– Imaging Software NIS-Elements
Base unit:
Maximum sample height: 38 mm (when used with LVNU5AI U5AI nosepiece and LV-S32 3×2 stage / LV-S64 6×4 stage) * 73 mm when used with one column riser 12V50W internal power source for dimmer, coarse and fine adjustment knobs Left: coarse and fine adjustment / Right: fine adjustment, 40 mm stroke Coarse adjustment: 14 mm/turn (with torque adjustment, refocusing mechanism)
Fine adjustment: 0.1 mm/turn (1 μm/graduation) Stage mounting hole intervals: 70 x 94 (fixed by 4-M4 screw)
LV-NU5 Motorized Universal Quintuple Nosepiece
(High-durability motorized 5-hole universal nosepiece)
Episcopic Illuminator:
LV-LH50PC 12V50W Precentered Lamphouse HG precentered fiber illuminator: C-HGFIE (with light adjustment: PC controlled) *option
Motorized operation and control of illumination selector turret
Motorized aperture stop linked to brightfield/ darkfield selector (automatic optimization matched to objective lens), field diaphragm (centerable)
Accepts ø 25 mm filter (NCB11, ND16, ND4), polarizer/analyzer, λ plate, excitation light balancer; equipped with noise terminator
Diascopic Illumniator:
LV-LH50PC 12V50W Precentered Lamphouse (Fly Eye optical system)
Internal aperture, field diaphragm, filter (ND8, NCB11); transmitted/ reflected selector switch; 12V100W also available (option)
Eyepiece Tube:
LV-TI3 trinocular eyepiece tube ESD (Erected image, FOV: 22/25)
LV-TT2 TT2 tilting trinocular eyepiece tube (Erected image, FOV: 22/25)
C-TB binocular tube (Inverted image, FOV: 22)
P-TB Binocular Tube (Inverted image, FOV: 22)
P-TT2 Trinocular Tube (Inverted image, FOV: 22)
LV-S32 3×2 stage (Stroke: 75 x 50 mm with glass plate) ESD compatible
LV-S64 6×4 stage (Stroke: 150 x 100 mm with glass plate) ESD compatible
LV-S6 6×6 stage (Stroke: 150 x 150 mm) ESD compatible
CFI eyepiece lens series
Objective lenses:
Industrial Microscope CFI60-2/CFI60 optical system Objective lens series: Combinations in accordance with the observation method
ESD performance:
1000 to 10V, within 0.2 sec. (excluding certain accessories)
Power consumption:
Approximately 8.6kg
